A buddy hands you his Echelon, taps the front of the slide, and tells you the stock guide rod is plastic and you should swap in solid metal. He is half right. The factory rod is a polymer assembly, and a machined Springfield Echelon guide rod does change a couple of real things. It also does not do most of what people hope it does.
We machine these rods in-house in Cheshire, Connecticut, so I will give you the version I give people across the counter. Some of it is yes, here is exactly why. Some of it is save your money.
The short answer on a Springfield Echelon guide rod
A steel Springfield Echelon guide rod adds a little weight at the muzzle and gives you a captured assembly you can take apart to change springs. That is the honest scope of it.
It will not fix your groups and it will not make the gun cycle a category of ammo it would not run before. If a rod swap changes how the gun feels in your hand, the spring inside it is doing most of that work, not the steel. Keep that straight and the rest of this is easy.
What a Springfield Echelon guide rod actually does
The guide rod has one job during the firing cycle: keep the recoil spring captive and aligned as the slide travels back and returns. The factory polymer rod does that job. It is light, and the slide and barrel do the heavy lifting on every shot.
A steel rod does the same alignment job and adds mass out front. On a striker pistol like the Echelon, that small amount of added weight sits low and forward, which some shooters feel as a slightly flatter return. Two things matter here. The effect is modest, and it is the spring you pair with the rod, not the metal of the rod, that determines whether the gun runs your loads.
What “my guide rod failed” usually means
People say the guide rod failed when the gun starts short-stroking, failing to return to battery, or feeling sluggish. The rod is rarely the part that quit. A polymer guide rod can wear or warp over a high round count, but nine times out of ten the symptom traces back to the recoil spring losing tension, or to a dry, dirty slide.
How to confirm it
Pull the slide off and look at the recoil spring assembly. Check these before you spend a dollar:
- Is the spring shorter than it used to be, or kinked? A tired spring is the usual culprit.
- Is the rod cracked, bent, or chewed where it seats? That is a real rod failure.
- Is the slide bone dry or gritty? Clean and lube it, then test again before changing parts.
- Did the trouble start with new ammo? Underpowered loads short-stroke a gun that runs fine on standard pressure.
If the spring is the problem, a fresh spring at the right weight fixes it. You do not need a steel rod to solve a spring problem.
Factory rod vs steel vs tungsten
Here is how the three options actually differ, and where the differences stop mattering.
Weight
Factory is polymer and very light. Our full-size Echelon assembly weighs 38.10 grams against the 5.40 gram stock part, so roughly seven times heavier. Stainless steel is the practical heavyweight option for this gun. Tungsten is denser still and would add more mass in the same space, which is why people ask about it.
The firing cycle
Added muzzle mass slightly resists the slide’s movement and can make the return feel a touch more settled. On a heavier full-size gun the payoff is small because the gun already carries more mass. On a lighter, slimmer gun the same added weight is a bigger share of the total, so you tend to notice it more. Either way, this is felt behavior, not a measured accuracy or recoil-reduction number.
What it does not do
A steel or tungsten rod does not tighten groups, and we will not tell you it cuts recoil by some percentage. It does not change the trigger, the barrel, or the sights. If a salesperson promises a guide rod will make you shoot better, walk away.
Captured vs non-captured

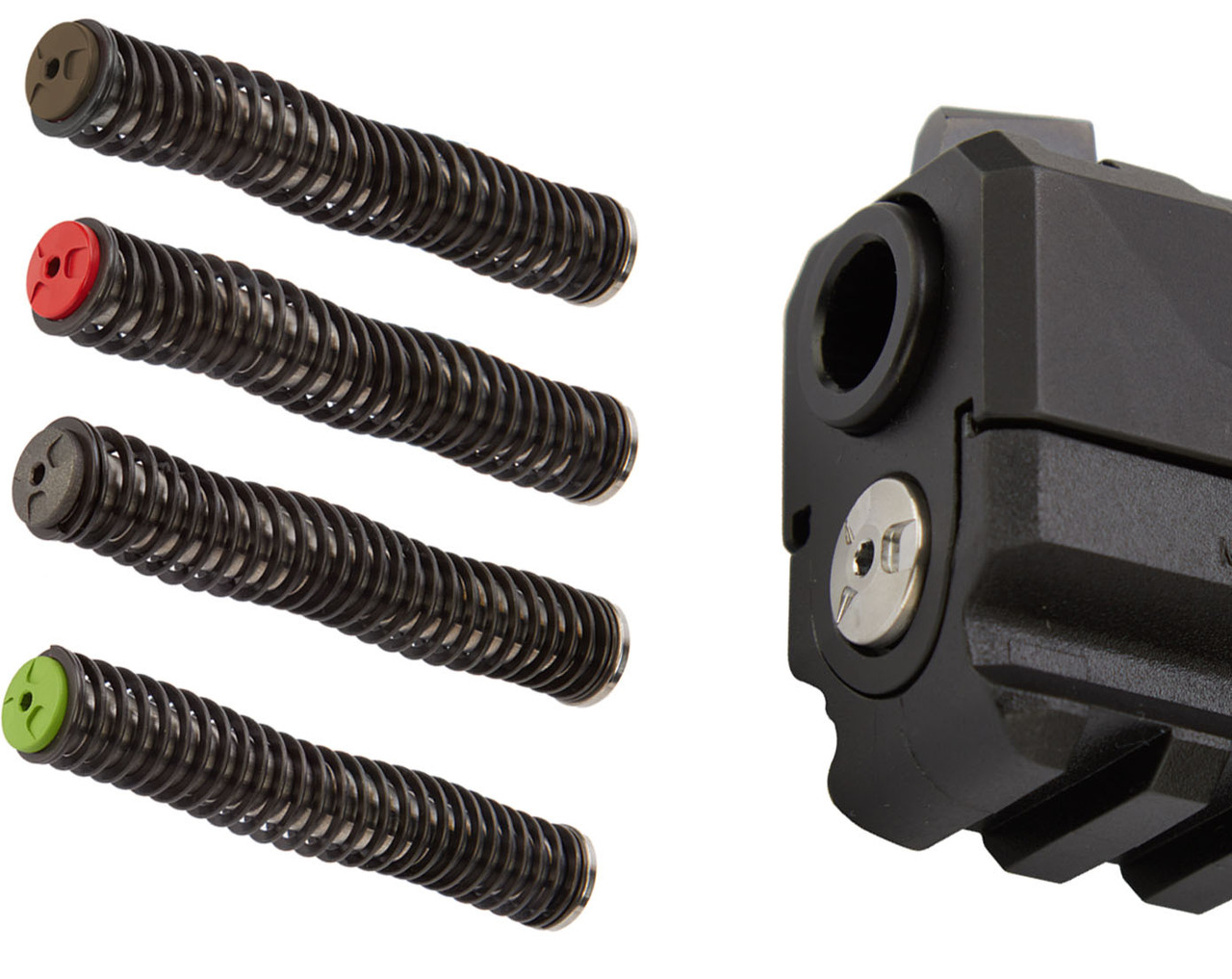

Both NDZ Echelon rods are captured assemblies, meaning the spring stays on the rod as one unit. Our Compact rod uses dual hex sockets with two Allen profiles so you can take it apart and change springs without fighting a loose spring across the bench. A non-captured rod lets the spring come free, which is fine if you like tuning but messier to handle. Captured is the easier daily choice for most people.
The spring is the variable
This is the part people skip. The spring weight, not the rod material, decides how the gun cycles. Too heavy and the slide may not fully cycle weak ammo. Too light and the slide slams hard and may not reliably feed stout loads. The rod is the rail; the spring is the tune. Get the spring right for your ammo and the gun runs.
Does a Springfield Echelon actually need one?
Honest verdict, broken out by who you are:
- You want a captured, take-apart assembly so you can swap spring weights for different ammo or competition: yes, a steel Springfield Echelon guide rod earns its place.
- You want durable metal in place of polymer and like the slightly more settled feel: reasonable upgrade, go in with realistic expectations.
- You are chasing tighter groups or a recoil-reduction number: no, this is the wrong part.
- Your gun runs fine and you have no plan to tune springs: the factory rod is doing its job. Spend the money on ammo and range time.
One caution on spring weight. Our Compact assembly ships around a 14 lb stock ISMI spring with plus and minus 10 percent options, and the full-size around a 14.5 lb stock with 12 and 16 lb choices. If you drop in a weight that does not match your ammo, you can introduce cycling problems that were not there before. Start at the stock weight, confirm reliability, then tune.
On tungsten: it is real, it is denser than steel, and in principle it packs more mass into the same length. We do not make a tungsten rod for the Echelon, so I will not pitch you one. For most Echelon owners stainless already adds all the practical mass the platform can use, and tungsten’s extra cost buys very little you would feel on this gun.
How to verify exact fitment
The Echelon comes in more than one size, and the rods are not interchangeable. Match the right Springfield Echelon guide rod to your exact model:
- Echelon full-size (4.5F): use the full-size captured assembly. It is built for the 4.5F and is listed to fit that model only.
- Echelon Compact 4.0C, 4.0C Comp, and Hybrid 4.0FC: use the Compact heavyweight assembly. Our Compact rod is listed to fit those three and explicitly does not fit the 4.5F full-size.
If a listing says “fits most 9mm” or “universal,” treat that as a red flag for this gun. The Echelon’s recoil assembly is model-specific, and a vague fitment claim usually means it was not built for your slide. Confirm your exact model marking before you order.
What we build, and why
We machine both Springfield Echelon guide rod assemblies from US-sourced stainless steel in Cheshire, Connecticut, and they carry a lifetime warranty against manufacturing defects. Two parts, two jobs.
The full-size captured assembly is built for the 4.5F. It weighs 38.10 grams against the 5.40 gram factory part and offers 12 lb, 14.5 lb stock, and 16 lb ISMI spring options, plus a tuner pack with all weights. The Compact heavyweight assembly is built for the 4.0C, 4.0C Comp, and Hybrid 4.0FC, uses dual hex sockets with twin Allen profiles for quick spring changes, and ships with a 14 lb stock ISMI spring plus plus and minus 10 percent options. [VERIFY: exact finish options per SKU, the pages list black nitride, Cerakote and PVD on the Compact listing.]
The point of in-house machining is control. We cut these to spec, capture the spring properly, and make the assembly easy to take apart so you can actually use the tuning options instead of fighting the part.
So, should you do this?
Decide it like this:
- Confirm your exact Echelon model: 4.5F, 4.0C, 4.0C Comp, or 4.0FC.
- Diagnose first. If the gun acts up, clean it and check the spring before buying anything.
- If you want to tune springs or just want durable captured metal, buy the rod that matches your model.
- Start at the stock spring weight, confirm reliability with your carry or match ammo, then adjust up or down.
- If you are after accuracy or a recoil number, this is not the part. Save it for ammo.
If you do need one
For the full-size gun, go with our full-size Echelon captured guide rod assembly. For the smaller guns, the Compact heavyweight assembly covers the 4.0C, 4.0C Comp, and 4.0FC. Match the part to your model and you are done.
If you want the broader logic behind any pistol guide rod swap, read our pistol guide rod upgrade guide. And if you are weighing the same question on a different platform, the do you need a steel guide rod for a Glock 19 piece walks the same honest math on a lighter, more spring-sensitive gun.
Frequently asked questions
Does a steel Springfield Echelon guide rod reduce recoil?
It adds a little muzzle-forward mass that some shooters feel as a slightly more settled return. That is felt behavior, not a measured recoil-reduction figure, and we will not put a percentage on it.
Will the Compact rod fit my full-size Echelon?
No. The Compact assembly fits the 4.0C, 4.0C Comp, and 4.0FC and does not fit the 4.5F full-size. Use the full-size captured assembly for the 4.5F.
What recoil spring weight should I run?
Start at the stock ISMI weight that ships with your assembly and confirm the gun runs your ammo reliably. Only then tune up or down. The spring weight, not the rod, controls cycling, so wrong weight can cause the problems you were trying to avoid.
Why no tungsten Echelon guide rod?
We do not build one for this platform. Tungsten is denser than steel and adds more mass in the same length, but on the Echelon stainless already provides the practical added weight the gun can use, so the extra cost rarely earns its keep here.
